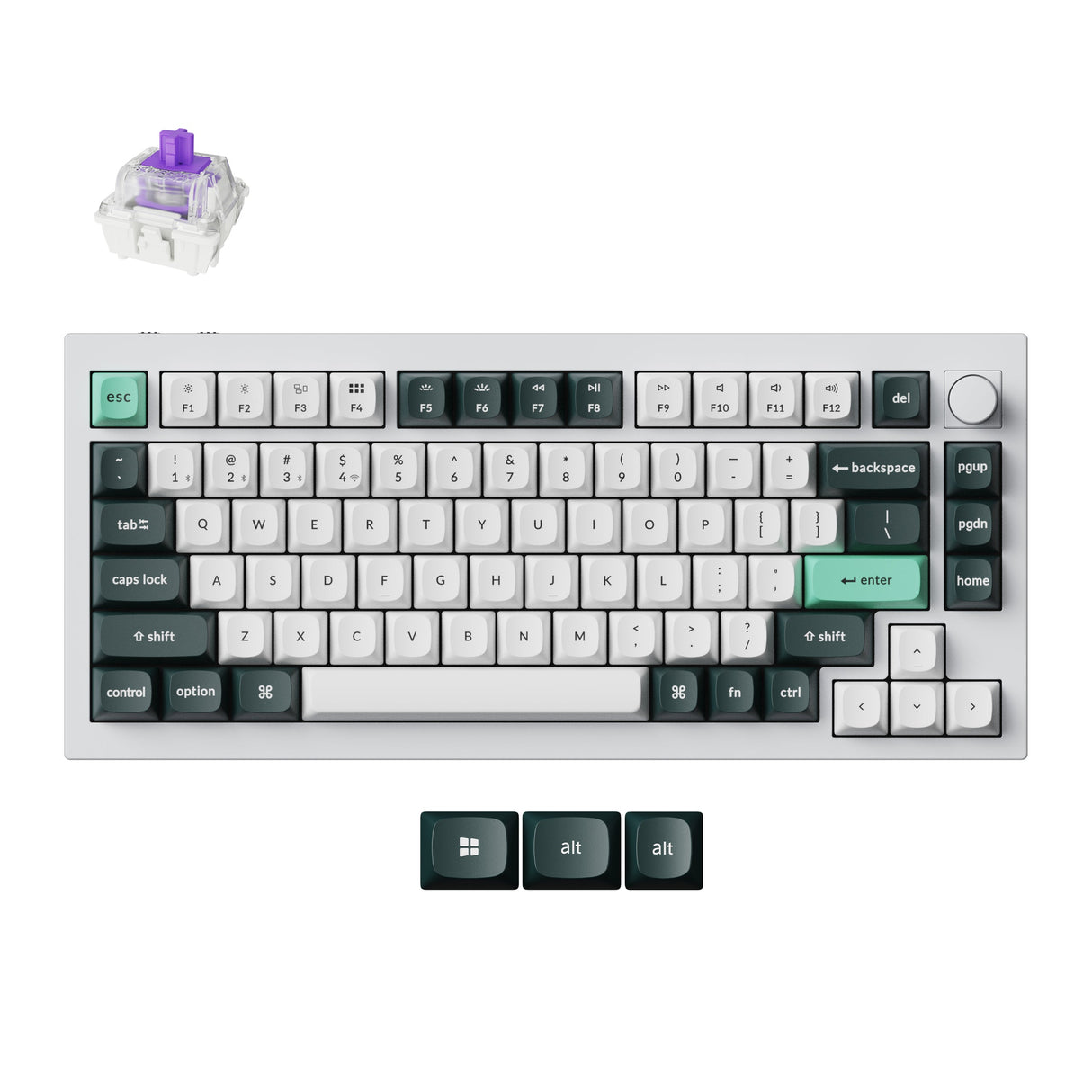

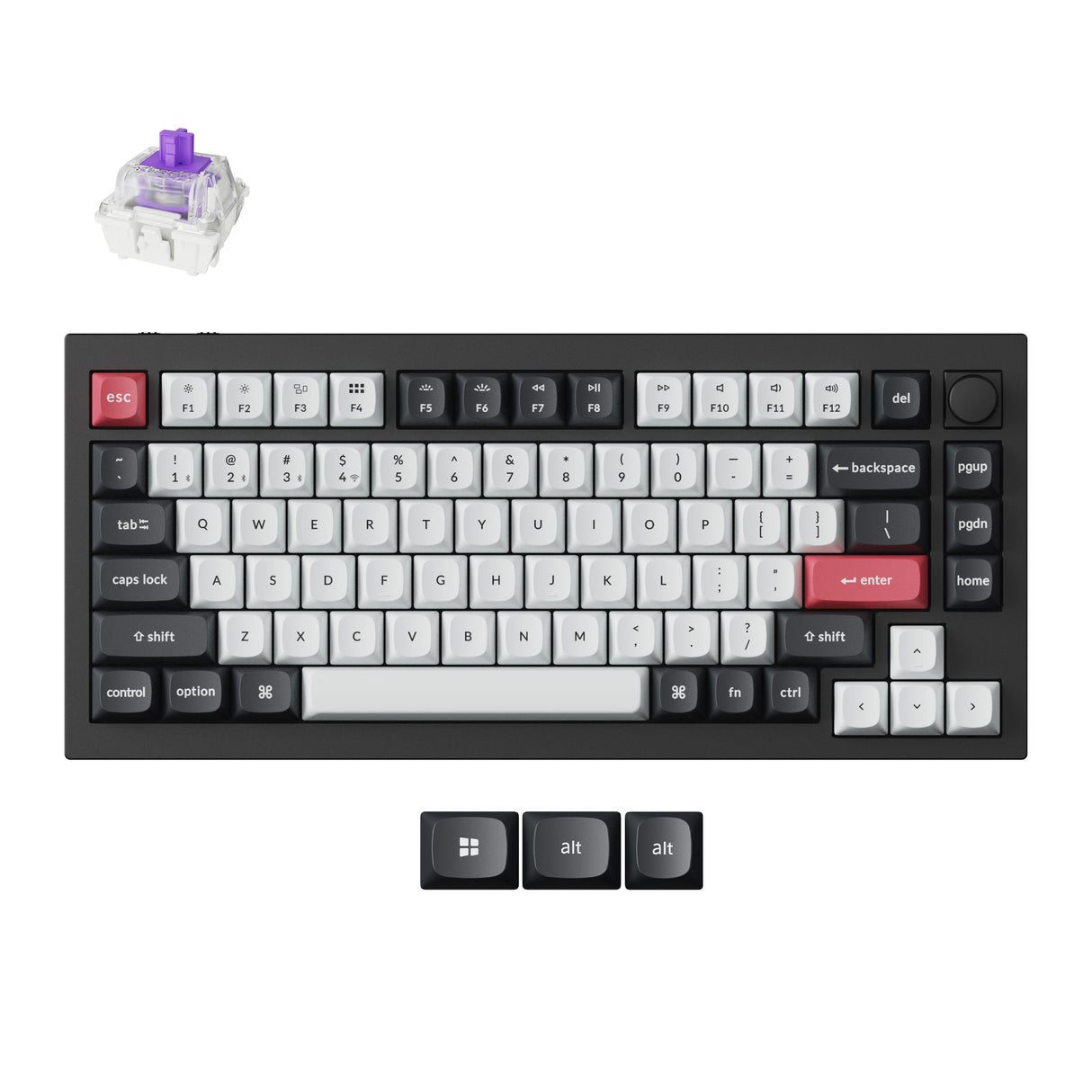

Keychron Q1 HE QMK Wireless Custom Keyboard

Rp 219,00
/

Type
Color
Switches

Please select another variant

The Fully Assembled version includes:

  • The keyboard PCB, the case, and the aluminum plate.
  • Keycaps (included Mac & Windows keycaps).
  • Adjustable-actuation-point Gateron 2.0 magnetic switches.


          No discount codes can be used for the Q1 HE.




          Keychron Q1 HE

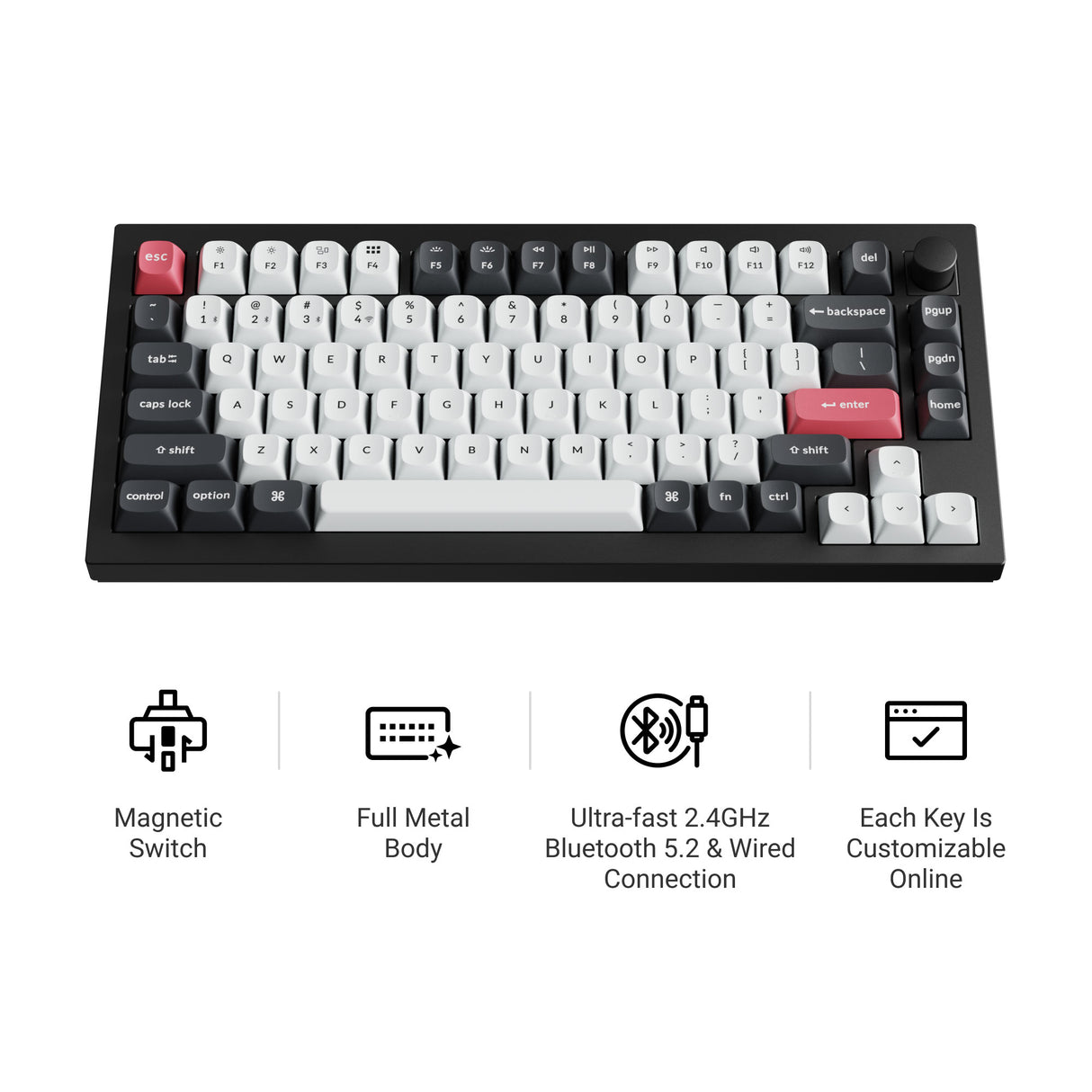

          Meet the Q1 HE, the world's first 75% layout wireless QMK custom keyboard equipped with Hall Effect Gateron 2.0 magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.

          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          In addition to the Hall Effect magnetic switches, the Q1 HE introduces a 2.4G connection mode with an impressive 1000Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, an all-aluminum body, PBT keycaps, and more.

          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard
          Customize Your Q1 HE

          Choose the keycaps, switches, and more accessories for your Q1 HE

          Customize Your Q1 HE

          Choose the keycaps, switches, and more accessories for your Q1 HE.

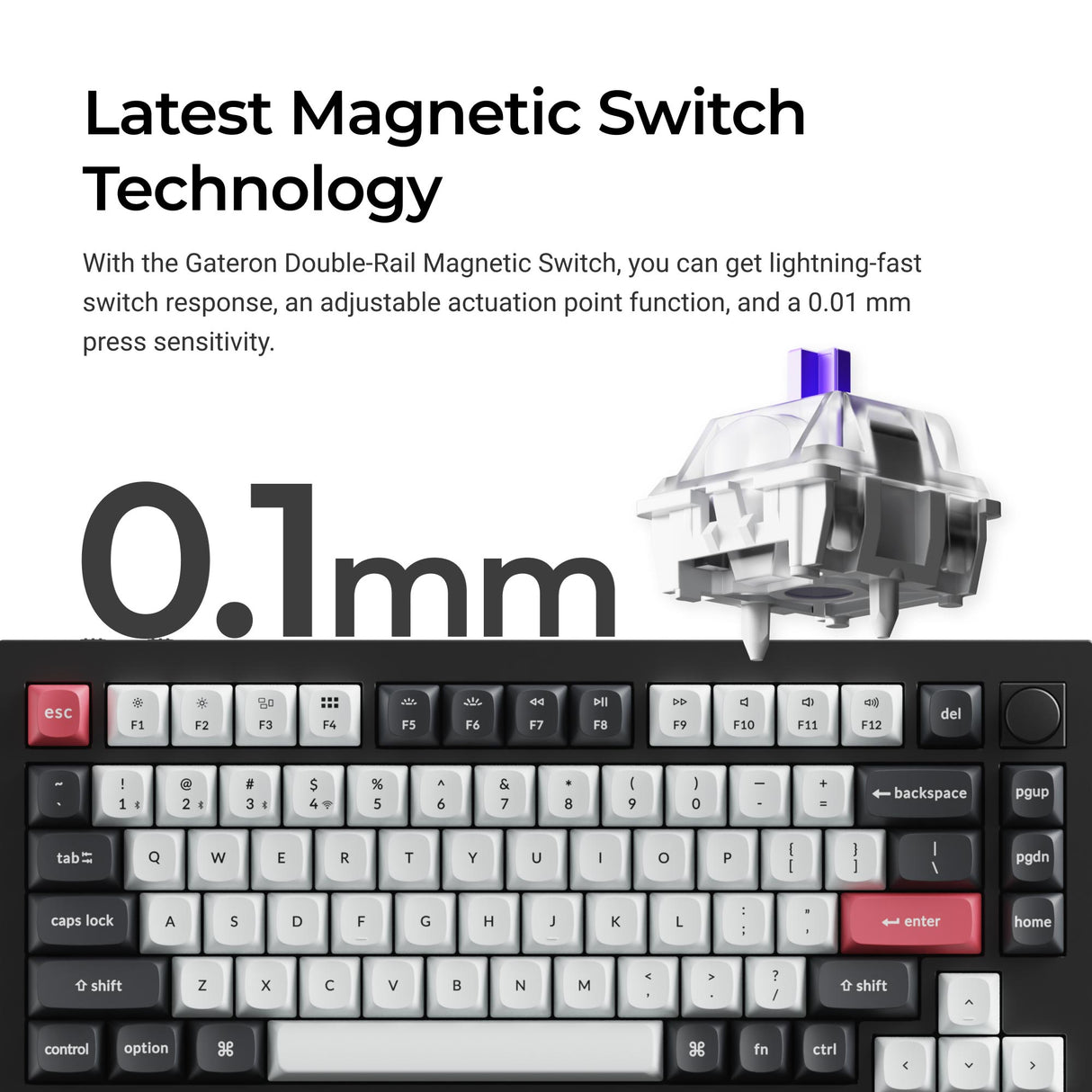

          2.0 Magnetic Hall Effect Switches

          With the first invented dual-rail structure, extended tube structure design, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

          Keychron-Q1-HE-magnetic-switch-0425.jpg__PID:5bc8427b-ecca-4cd1-a5fe-a636334debf9
          Q1-HE-Magnetic-switch-0207-2.jpg__PID:b399c67e-ad37-495f-aa8c-52f89715524a

          Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation.

          Keychron Q1 HE Adjustable Actuation Points

          Adjustable Actuation Point

          Customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.5 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.

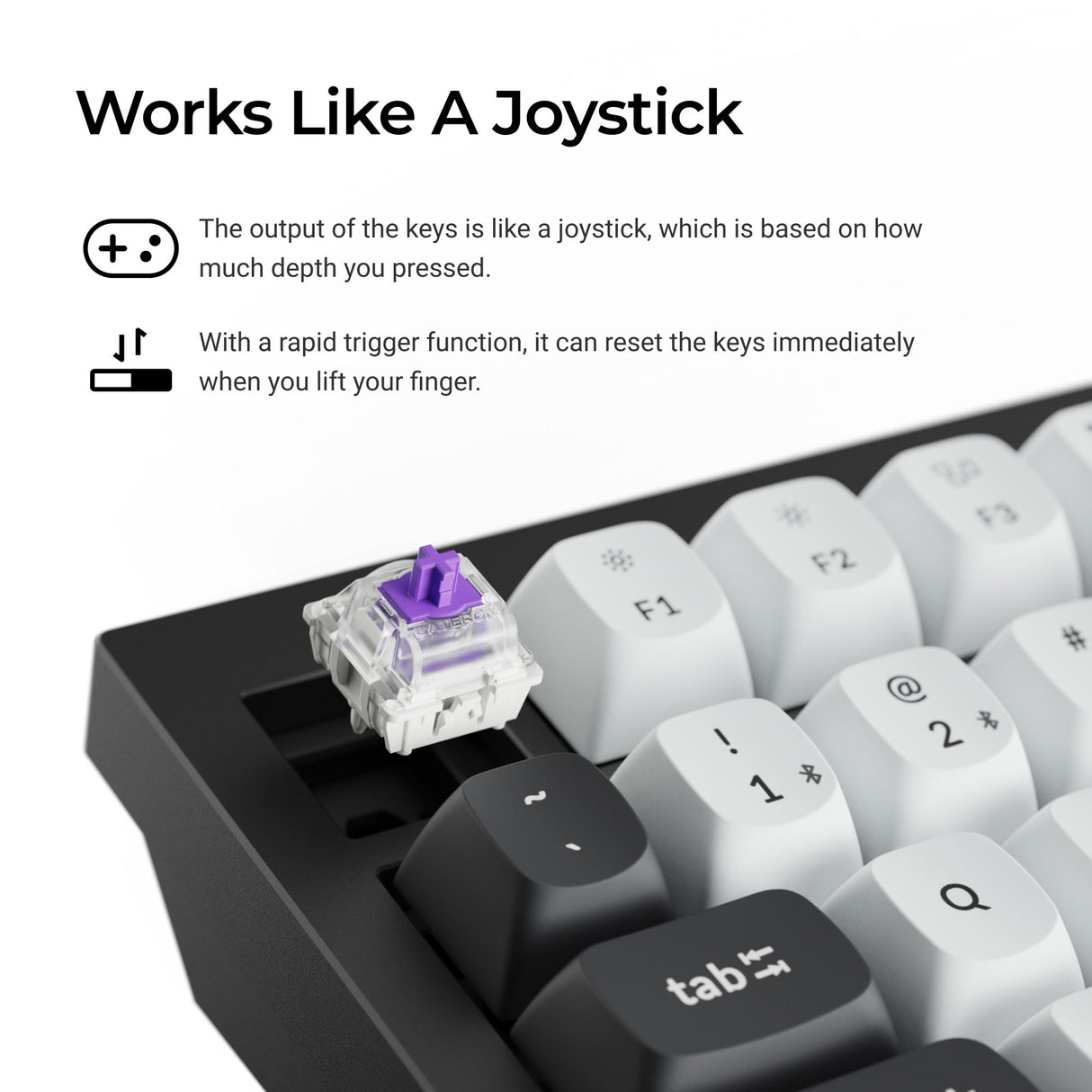

          Dynamic Rapid Trigger

          Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.

          Keychron Q1 HE Dynamic Rapid Triggering

          Multiple Actions, One Keystroke

          Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalized combinations that can give you an edge in competitive gaming.

          Keychron Q1 HE Four-In-One Action Keys
          Keychron Q1 HE Four-In-One Action Keys

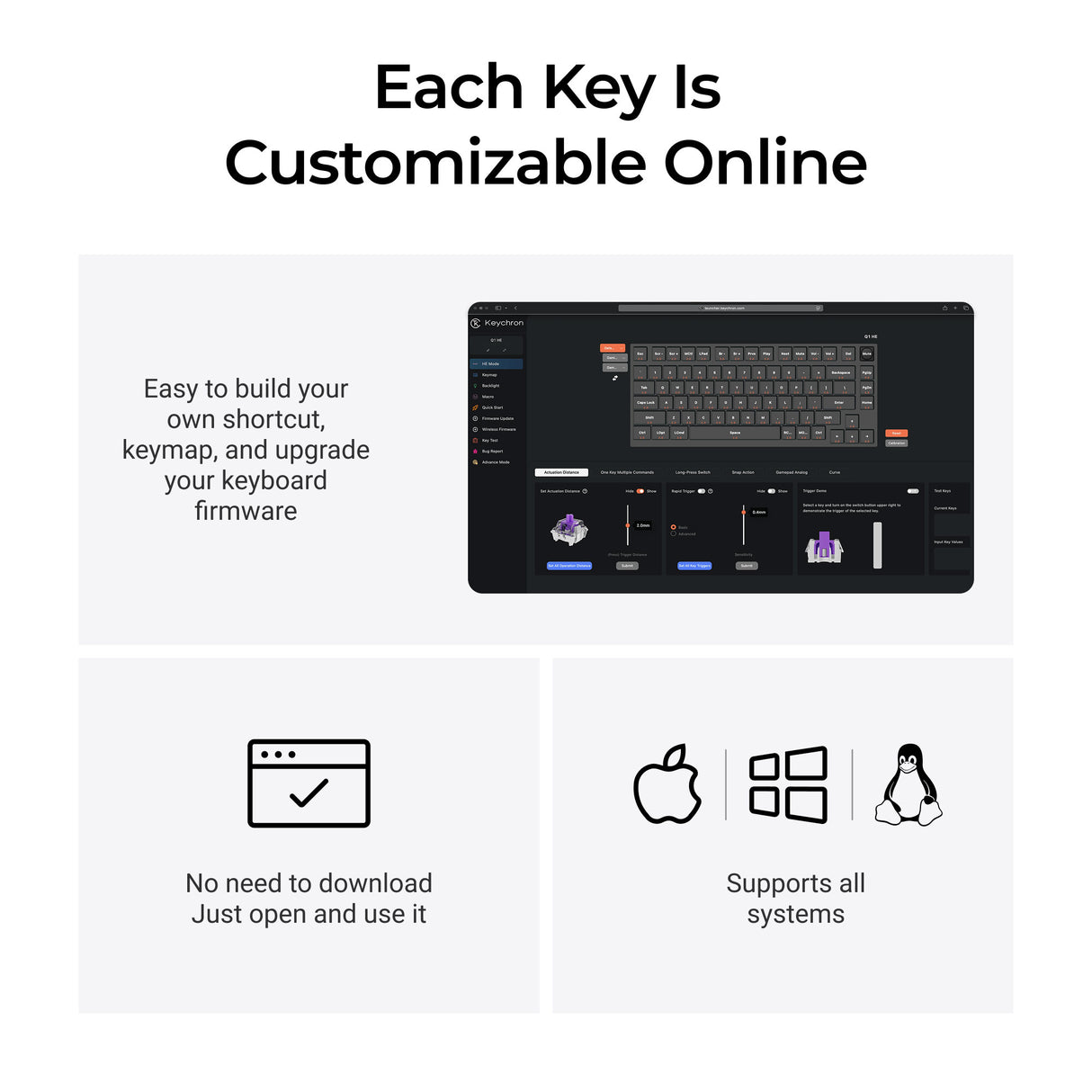

          Reassign Keys By The Keychron Launcher Web App

          With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.

          Keychron Launcher Q1 HE.png__PID:0f4939fc-6038-4396-b9ee-e267391bee8f

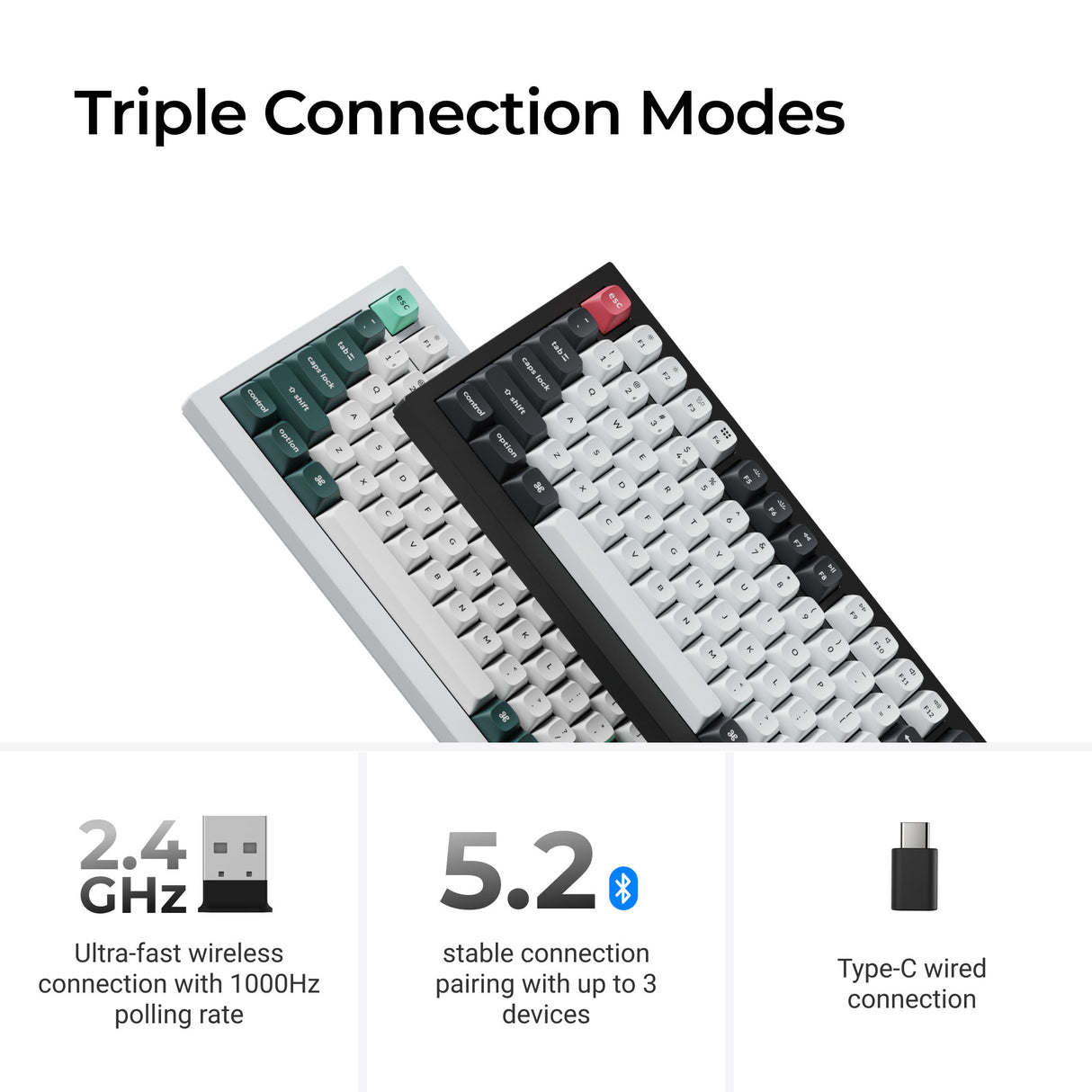

          2.4 GHz & Bluetooth Connection

          Experience peak gaming performance on the fly with the Q1 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 HE via Bluetooth 5.1 to three devices.

          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          A Piece Of Metal Art

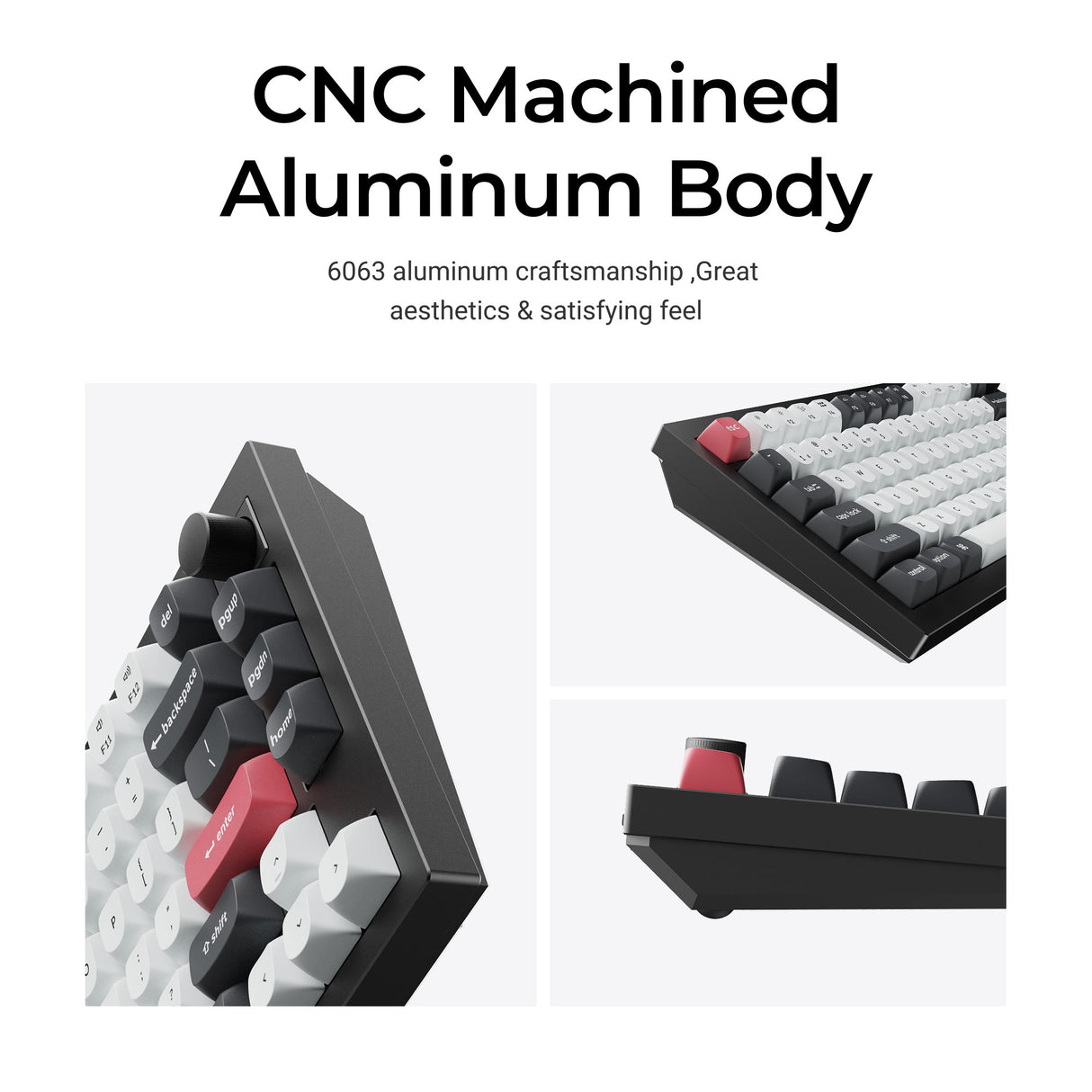

          The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.

          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          Customize Every Part

          To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.

          Keychron-Q1-HE-Structure.jpg__PID:2f4dd81a-14b4-42f8-91d1-f7e90d9ef26a

          Double-Gasket Design

          Silicone pads between the top and bottom cases reduce acoustic resonance, maintaining gasket flexibility and enhancing typing sound. The keyboard's bottom has an acoustic pad, improving sound quality with a slight impact on flexibility. Users seeking more flexibility can opt to remove the acoustic pad.

          Gasket structure of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard
          Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          An Epic Core Inside The Keyboard

          Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.

          Suitable for All Devices

          Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q1 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

          Keychron-Q1-HE-77.jpg__PID:427becca-bcd1-45fe-a636-334debf96ca8
          Section
          Drop element here
          Keychron-Q1-HE-OSA-Double-shot-keycapos.jpg__PID:7429a9e2-8de1-4f0c-b50d-c2daaf112d1d

          OSA Profile Double-shot PBT Keycaps

          It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

          Hot-swappable

          Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches.

          *The Q1 HE is compatible with the magnetic switches sold on the Keychron website only.

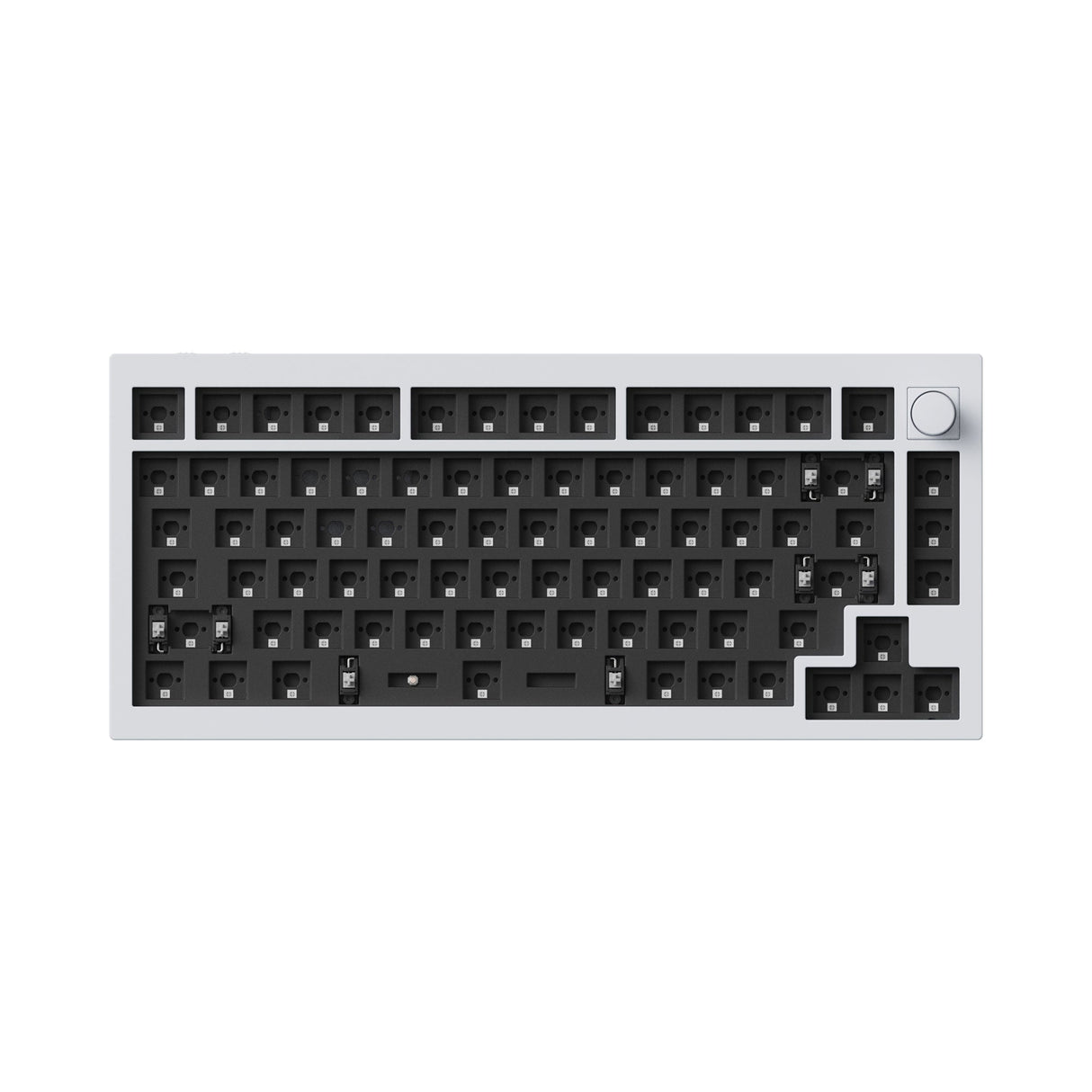

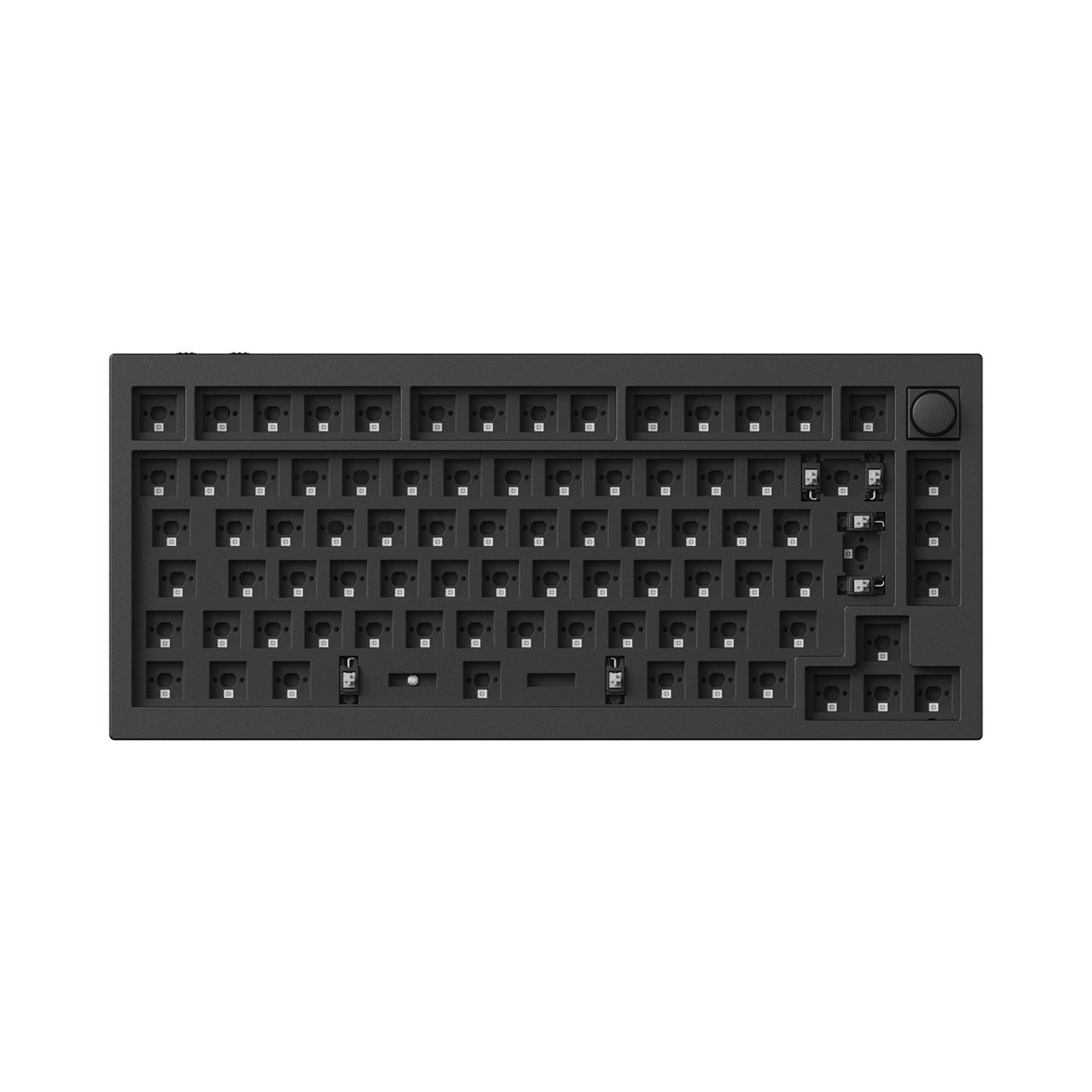

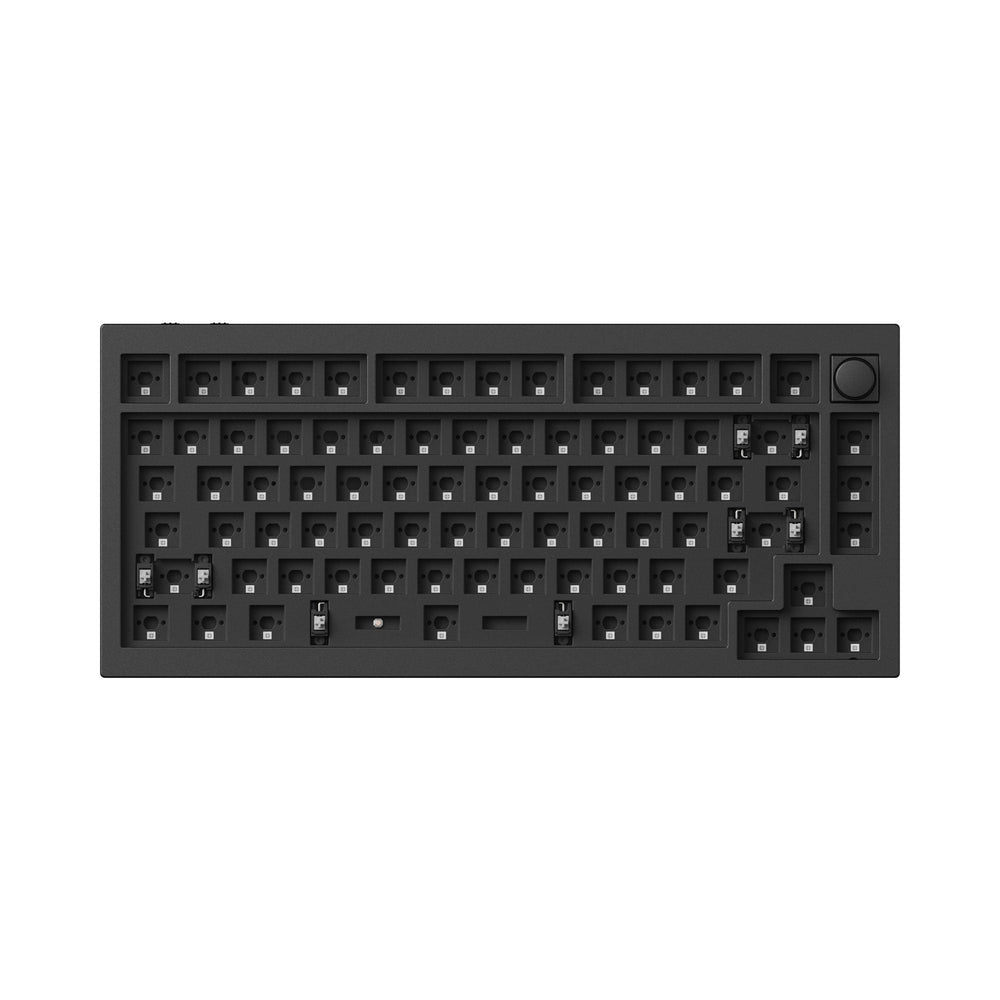

          Barebone US layout of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          South-facing RGB LED Lights

          The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

          Stabilizers of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard

          All New Screw-In PCB Stabilizers

          The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth.

          What's in the box?

          Package list of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard
          Package list of Keychron Q1 HE Wireless QMK Custom Magnetic Switch Keyboard
          Differences-among-the-Q-HE-Q-Max-Q-Pro-Series-Keyboards.jpg__PID:5854e10a-afa7-40fb-8f4d-2fbca034839f

          Specs

          Width145 mm
          Length327.5 mm
          Front Height22.6 mm  (without keycaps)
          Back Height35.8 mm (without keycaps)
          Feet Height2.4 mm
          Angle5.2°
          Weight1735 g ± 10 g (Fully Assembled version)
          Body MaterialAluminum
          Plate MaterialAluminum
          Polling Rate1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)
          N-Key Rollover (NKRO) Yes for both wireless and wired modes
          Rapid TriggerYes
          Adjustable Actuation Points0.5 - 3.8 mm
          Dynamic Keystrokes4-in-1 action keys
          Sensitivity0.1 mm
          N-Key Rollover (NKRO) Yes for both wireless and wired modes
          KeycapOSA Double-shot keycaps, not shine-through
          MCUARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
          BacklightSouth-facing RGB LED
          SwitchGateron 2.0 magnetic switch
          Hot-swappable SupportYes
          StabilizerScrew-in PCB stabilizer
          CableType-C cable + Type-A to Type-C adapter
          Connectivity2.4 GHz / Bluetooth / Type-C wired
          Bluetooth Version 5.1
          Bluetooth Device NameKeychron Q1 HE
          Battery4000 mAh Rechargeable li-polymer battery
          Operating Environment-10 to 50℃
          Wireless Working Time (Backlit off)  Up to 100 hours
          Keychron Q1 HE User Guide

          Learn more about the Keychron Q1 HE such as the shortcuts, HE mode, factory reset, and more.

          Keychron Q1 HE User Guide

          Learn more about the Keychron Q1 such as the Q1 shortcuts, assembling the Q1, factory reset, and more in the FAQ section.
