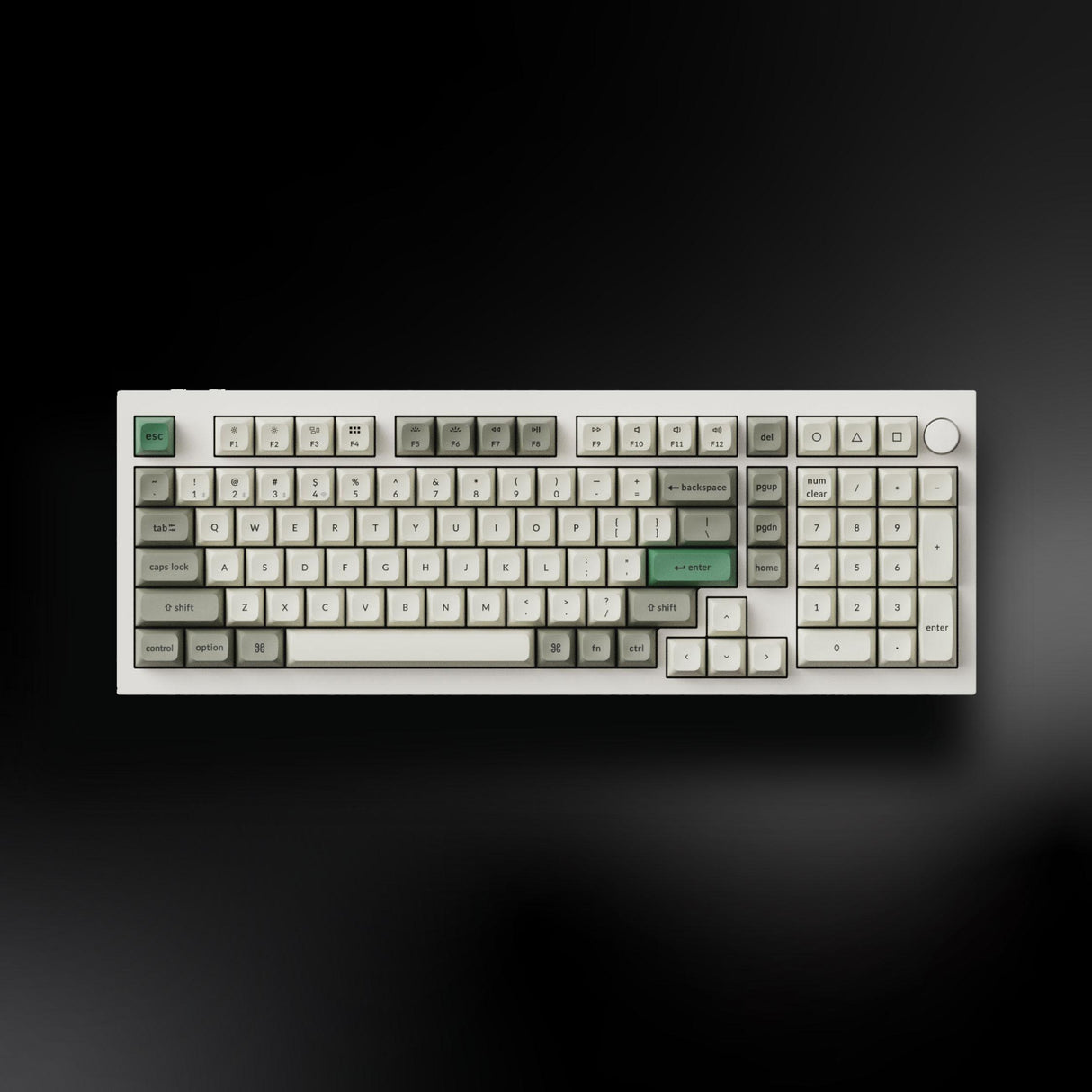

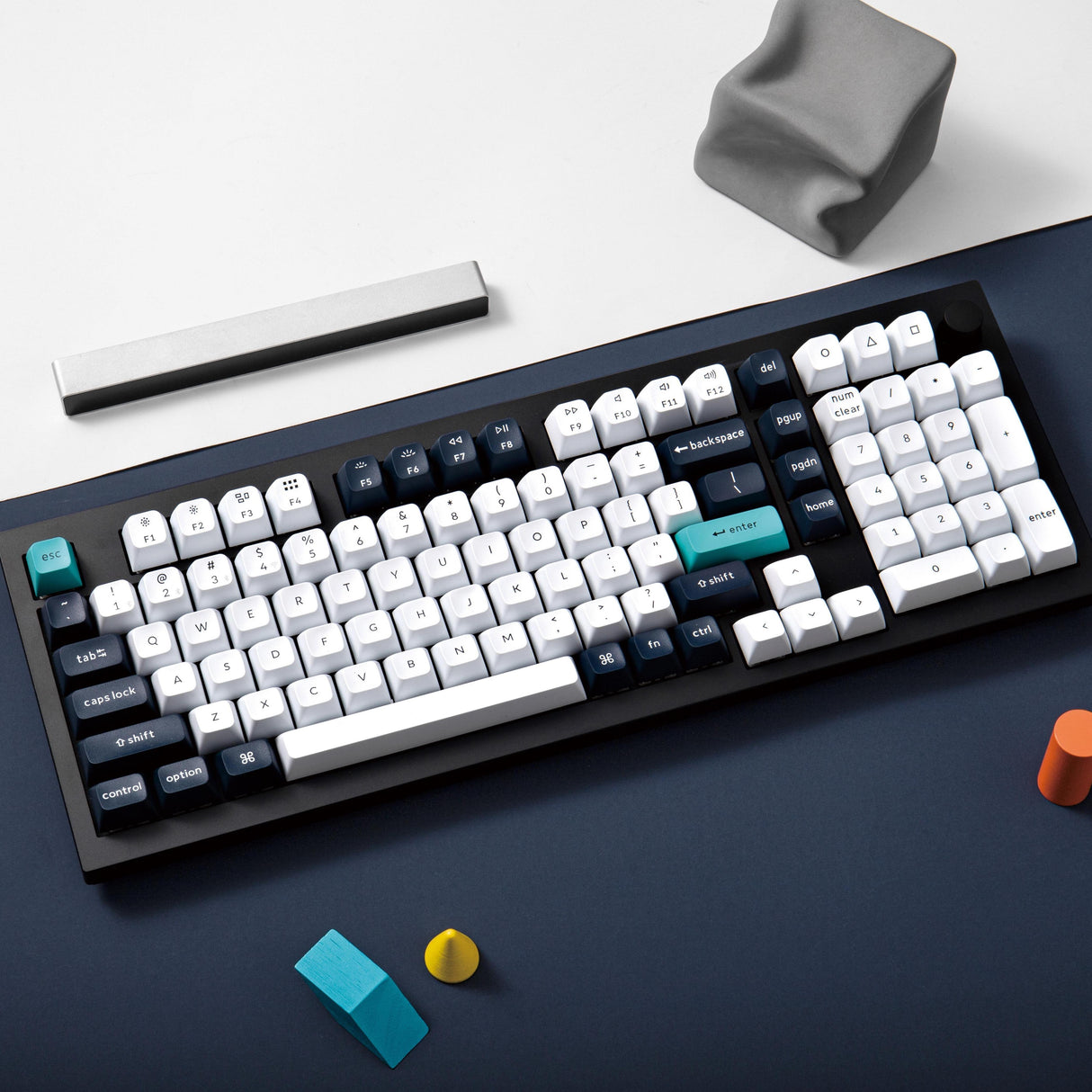

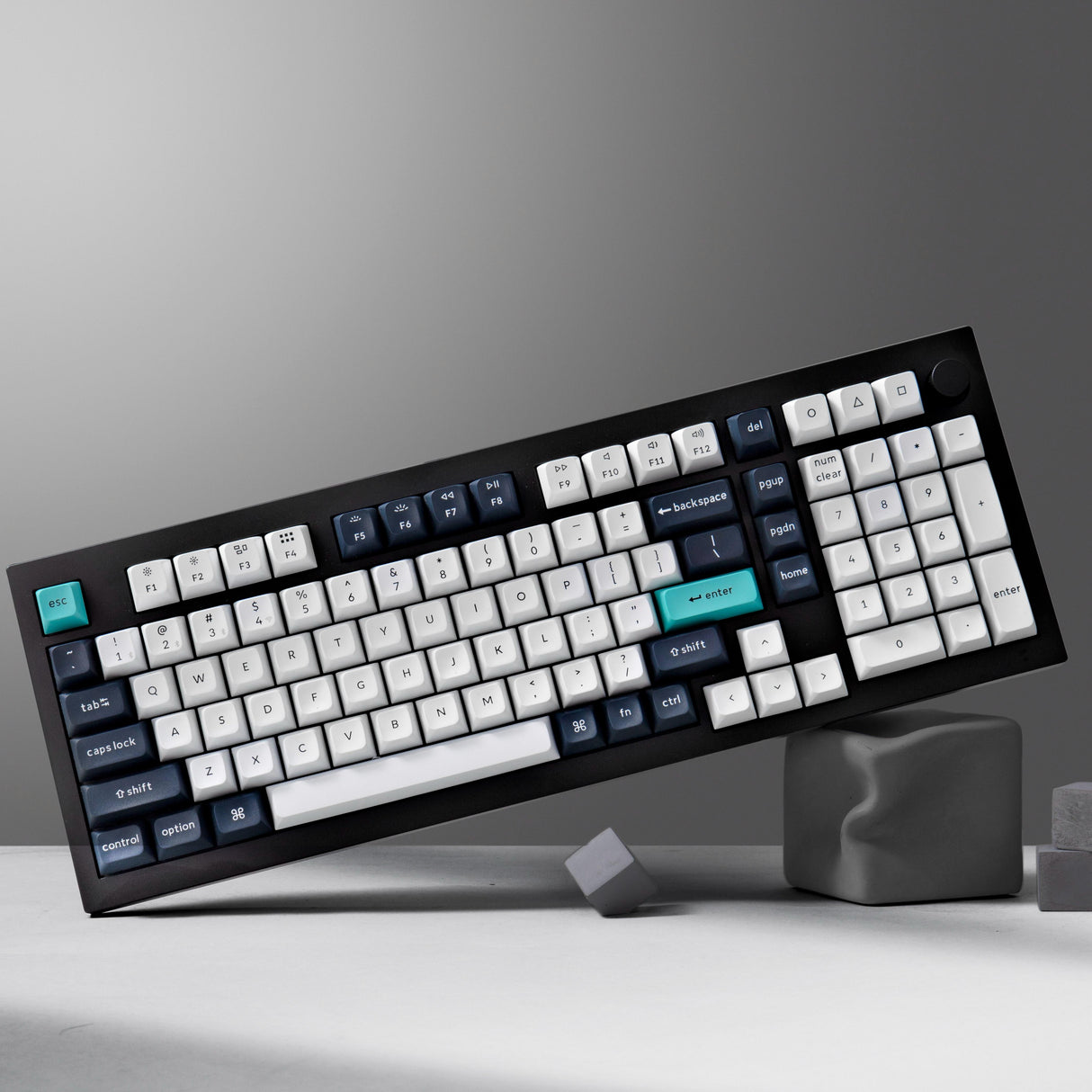

Keychron Q5 Max QMK/VIA Wireless Custom Mechanical Keyboard Aluminum Body

Keychron Q5 Max QMK/VIA Wireless Fully Assembled Knob

Specs

Width 145 mm

Length 408 mm

Front Height 22.6 mm (without keycaps)

Back Height 35.8 mm (without keycaps)

Feet Height 2.4 mm

Angle 5.2°

Weight 2215 g ± 10 g (Fully Assembled version)

Body Material Aluminum

Plate Material PC

Keycap KSA double-shot PBT keycaps, not shine-through (Fully Assembled version)

Switch Gateron Jupiter (Fully Assembled version)

Stabilizer Screw-in PCB stabilizer

Backlight South-facing RGB LED

Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.

MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)

Polling Rate 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)

N-Key Rollover (NKRO) Yes for both wireless and wired modes

Battery 4000 mAh Rechargeable li-polymer battery

Wireless Working Time (Backlit off) Up to 180 hours (Lab test result may vary by actual use)

Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)

Bluetooth Version 5.1

Compatible System macOS/Windows/Linux

Connectivity 2.4 GHz / Bluetooth / Type-C wired

Bluetooth Device Name Keychron Q5 Max

Operating Environment -10 to 50℃
